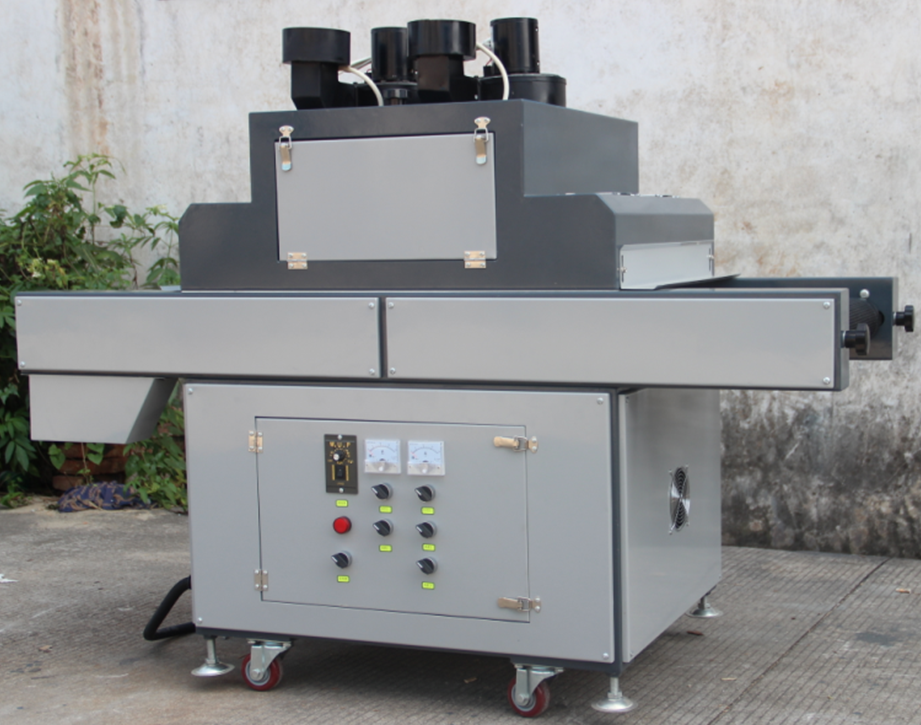

Description
Performance characteristics:
- Imported Teflon mesh belt, with stable and adjustable conveying speed;
- Install 2 UV lamps, and the number of lamps can be turned on as required;
- Instantaneous drying makes the surface of printed matter reach high hardness and friction resistance;
- The tunnel structure makes the whole machine have good shading and no damage;
- It is equipped with a strong lower suction system, which can firmly adsorb the substrate on the mesh belt;
- It can be conveniently used continuously with production line and other equipment.
The scope of application is applicable to the special effects such as wrinkle sanding, refraction, light crystal gem, colorful powder and convex oil printed on gold and silver cardboard, metal, glass, plastic and other substrates, as well as the light source of UV offset printing ink of offset printing press
Scope of application
It is suitable for curing special UV effects such as wrinkle sanding, refraction, light crystal gem, colorful powder and convex oil printed on gold and silver cardboard, metal, glass, plastic and other substrates.
Technical parameter
| Model | RW-UV400 | RW-UV750 | RW-UV1000 | RW-UV1200 |
| Feed inlet height: mm | 100 | 100 | 100 | 100 |
| Overall dimension: mm | 1500×600×1300 | 2500×1100×1500 | 4000×1300×1500 | 4000×1450×1500 |
| Length of feed inlet: mm | 200 | 500 | 1500 | 1500 |
| Outlet length: mm | 200 | 200 | 500 | 500 |
| Conveying speed: M / min | 0-25 | 0-25 | 0-45 | 0-45 |
| Exhaust air volume: M / min | 1500 | 2000³ | 2600³ | 3500³ |
| Conveying width: mm | 400 | 750 | 1000 | 1200 |
| Power supply voltage: V | 220 | 380 | 380 | 380 |
| Height of lamp tube and mesh belt: mm | 50-200 | 50-200 | 50-200 | 50-200 |
| Light source power: KW | 2×2 | 2×5.6 | 2×5.6 | 3×8 |
