Description

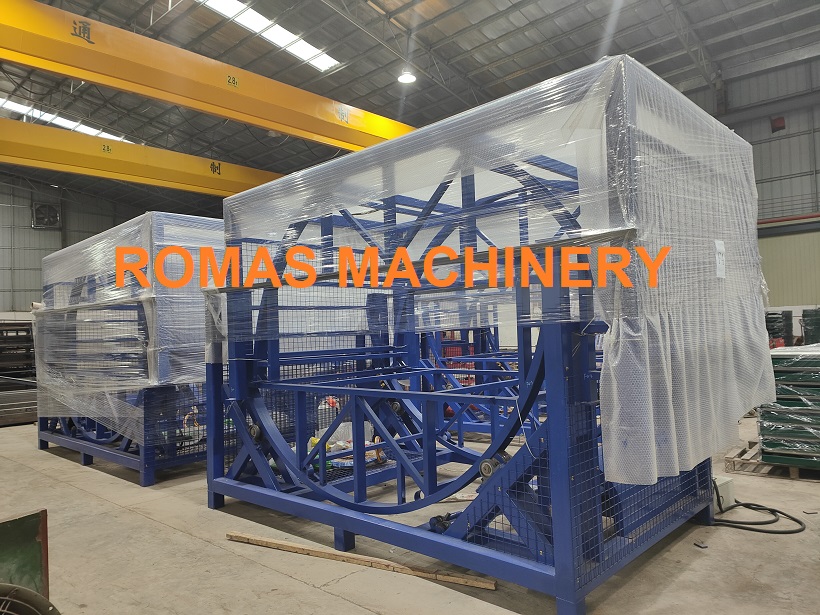

Turn over machine description :
Range of application
Widely used in bathtub, SPA, hot tub, swim spa. etc
Equipment function
Easy operation work efficient for factory making SPA, hot tub, swim spa flipper machine hot tub flipper
Turn over speed
Time required to Turn over 180 degrees: 18 seconds
Technical parameters
| Size of equipment: | 3400mm*3330mm |
| Cutting power of grinding head motor: | About 3KW three-phase four wire / voltage 380V |
| Equipment weight: | about 2200KG |
| The product min. width | 1250mm |
| The product max. width | 2550mm |
| With brake reducer | 1.5KW to ensure accurate position |
| Electrical control | famous brand components |
| The rollers diameter | 60x600mm (rubber coated roller) |
| 60x600x3(Galvanized non-powered) | |
| System: | Electric control system 1 SETS |
| Turn over 180 degrees: | 18S. |
| Load bearing: | 400kg |
| Lead time: | 20days |
There are two types of rollers:
- Diameter: 60x600mm rubber coated roller is used to contact the Bathtub body block to ensure that the product surface will not be scratched,
2.Below used Galvanized non-powered roller with diameter of 60x600x3mm
