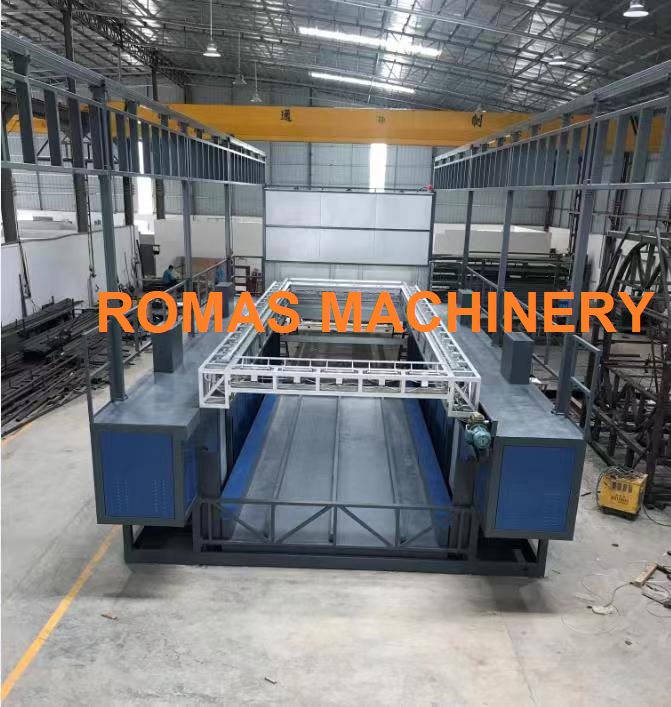

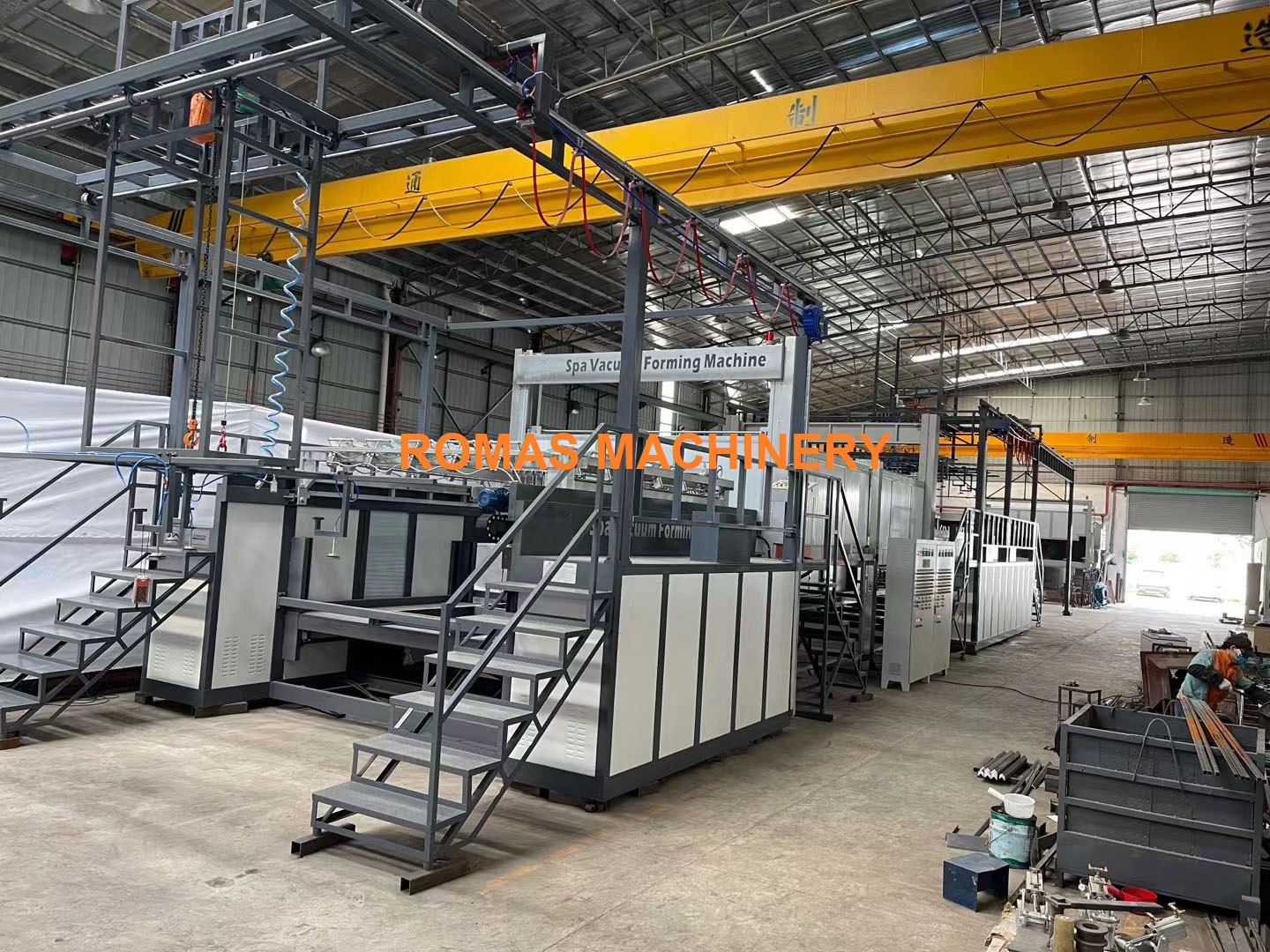

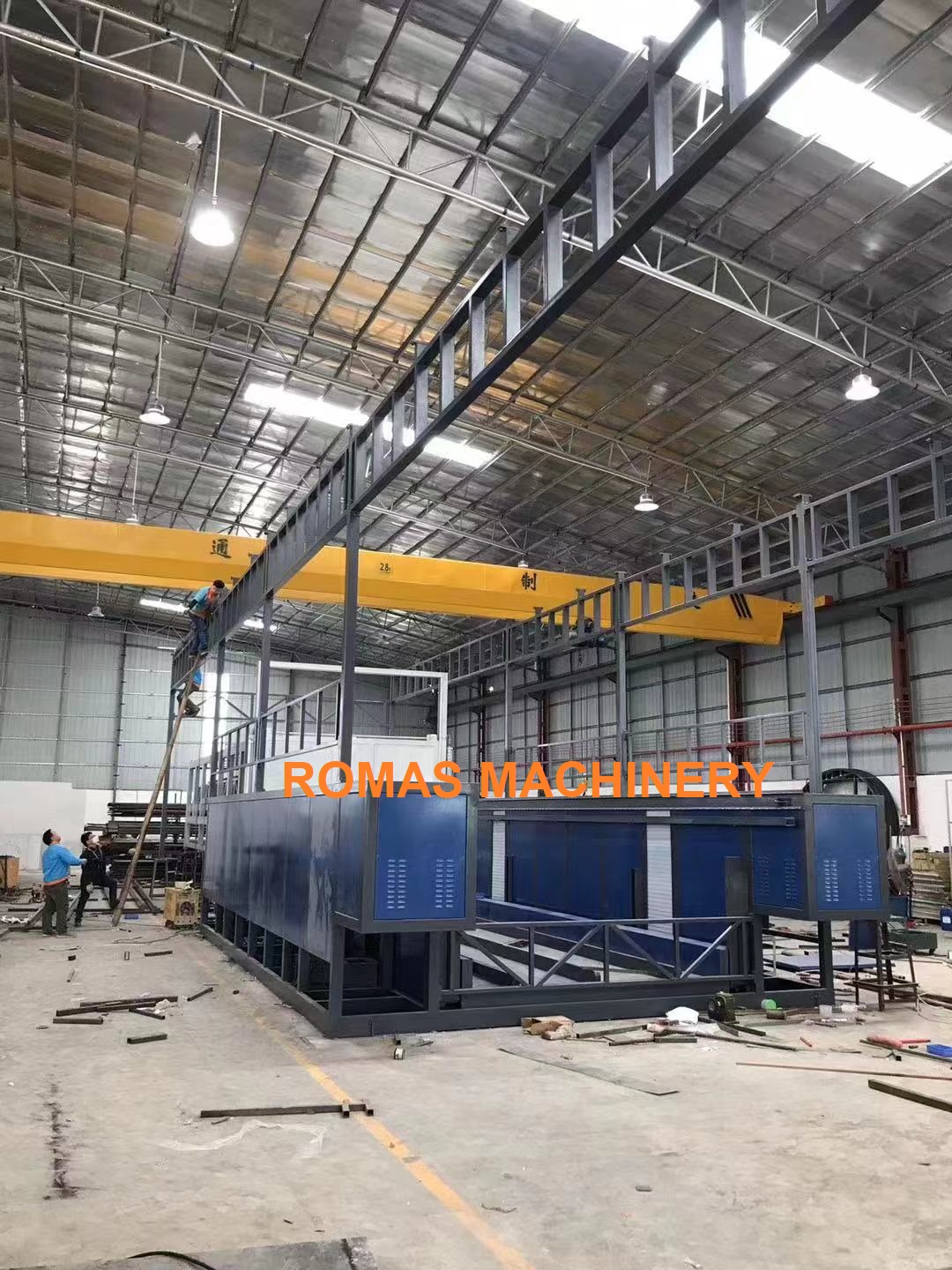

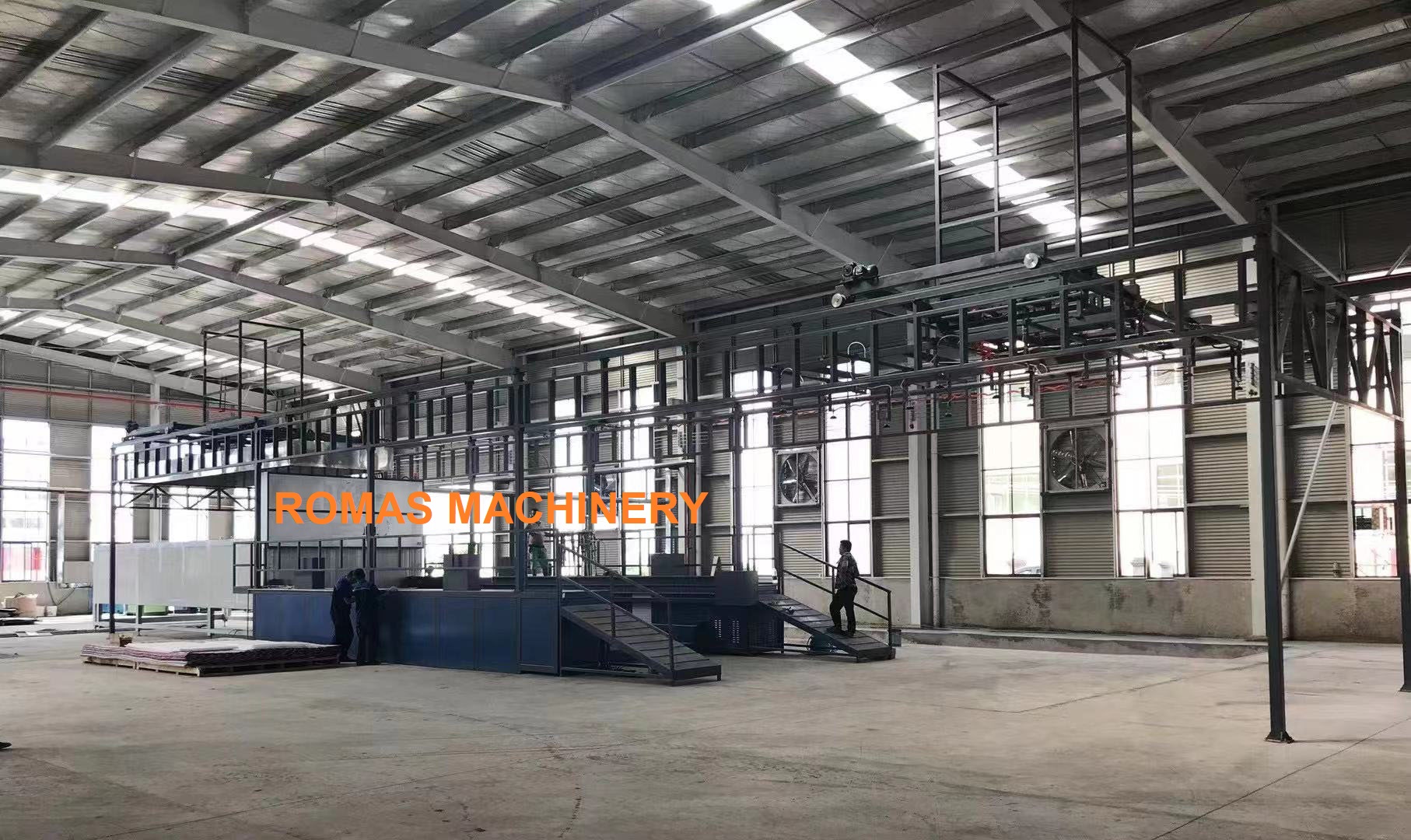

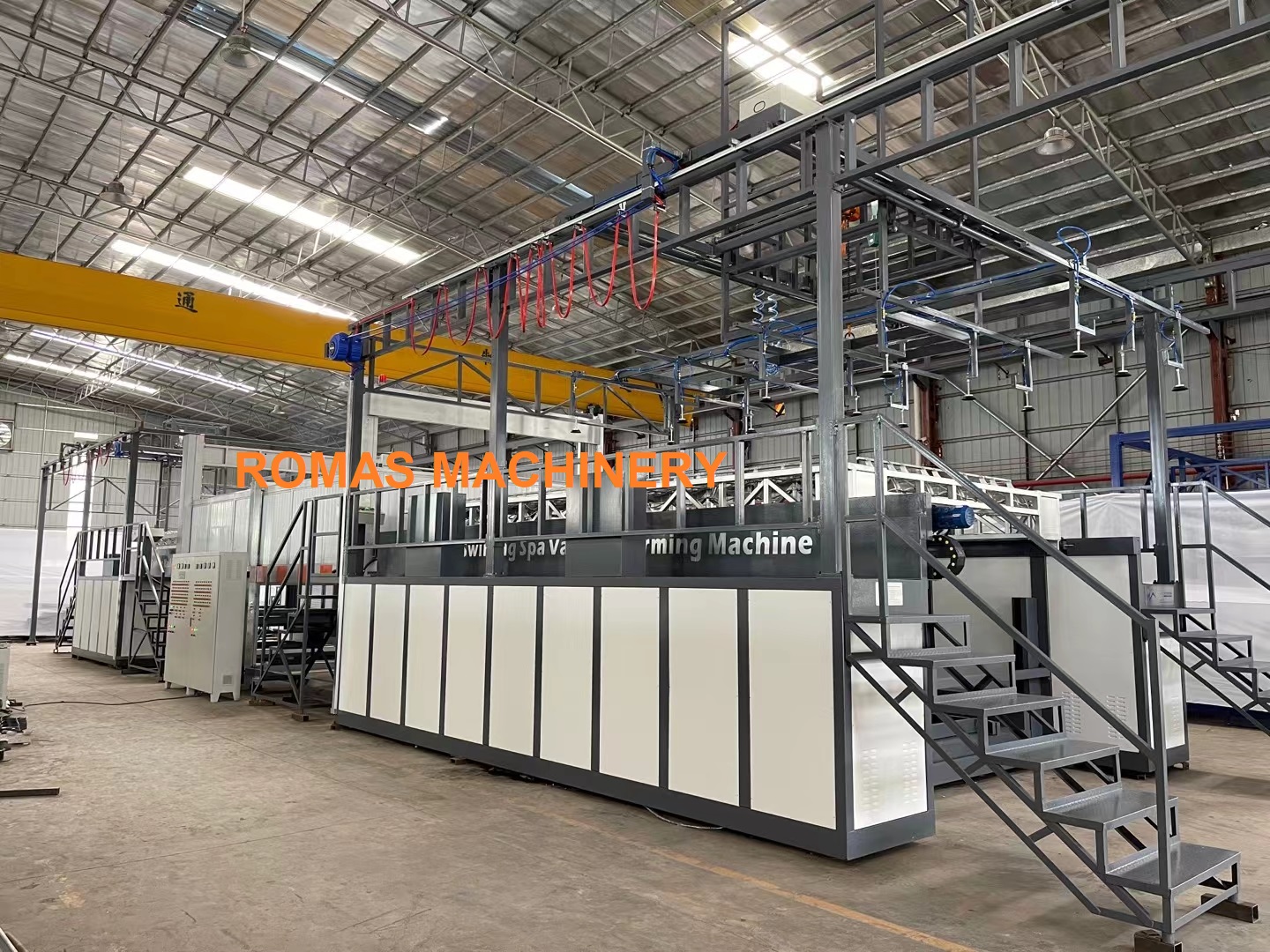

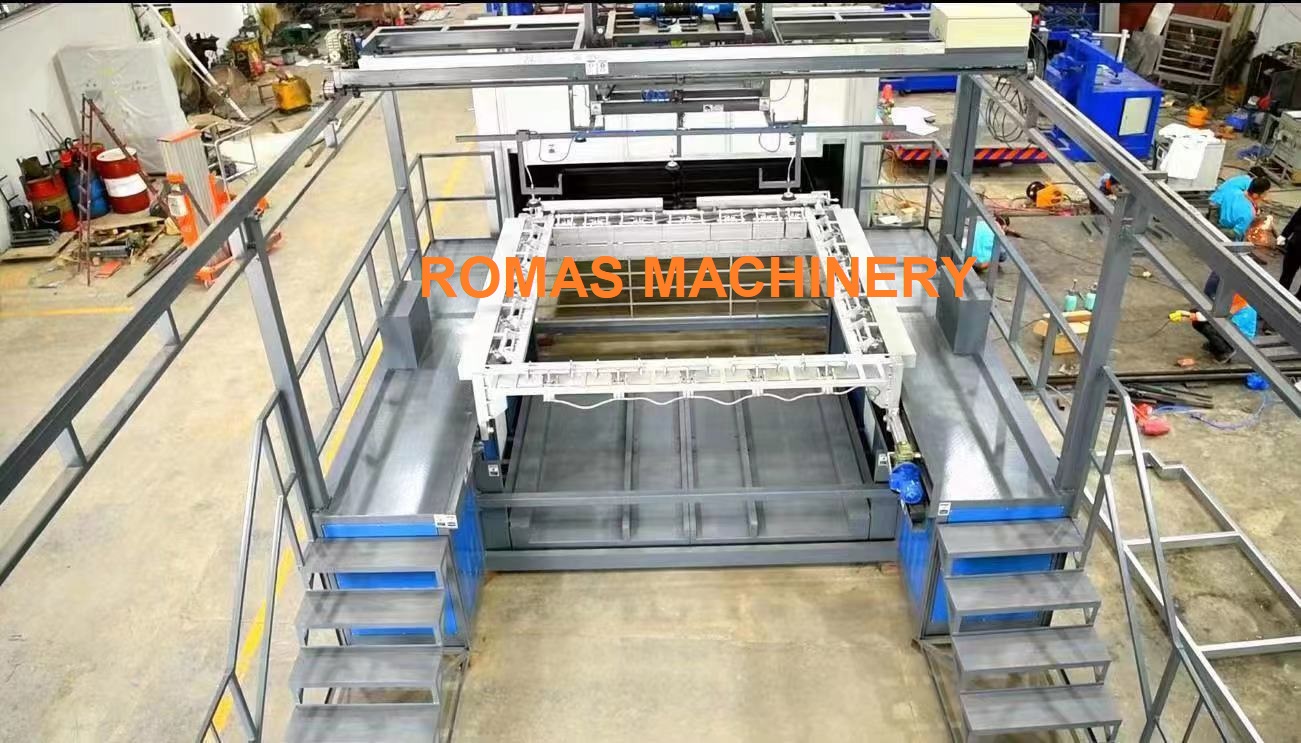

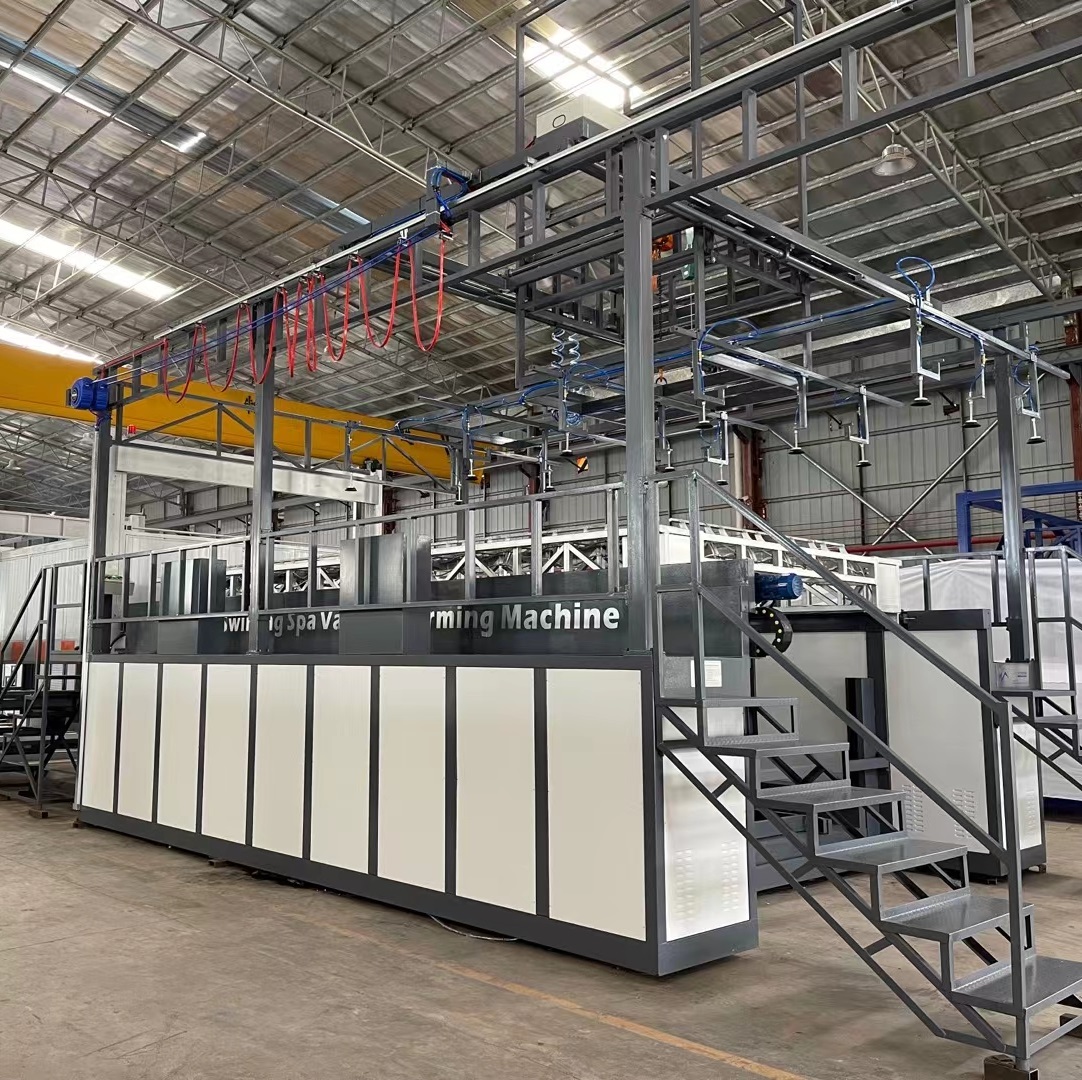

Acrylic Swimming Pool Outdoor SPA thermoforming/vacuum forming machine

We have different heater oven styles that can be chosen by electricity / oil / gas;

Description

Founded in 2006, Romas Machinery technology co, Ltd is Designated to provide our clients globally with a turn-key Smart production solution.

Automation Solution’ Smart Production’ solution Consultation, Design, and Installation Global Automation System Installation and Maintenance Services.



The Machine Main Technical Parameters

Parameters Contents
Material Acrylic
Sheet thickness 2-8mm
Forming length 12000mm(Customizable)
Forming width 3000mm(Customizable)
Max forming depth 1000mm(Customizable)
Work efficiency 2-3min/pcs
Heating oven Gas/ Electricity and Oil
Operating gas pressure 3kpa
Max gas consumption per hour 100000 kcal is 12 m3 / h
Power supply 380 V / 50 Hz / 3Ph
Air pressure 0.6-0.8Mpa
Machine size(L×W×H) 15000*4200*4200mm
Net weight About 16000kg

Technical Data series

Components Description QTY

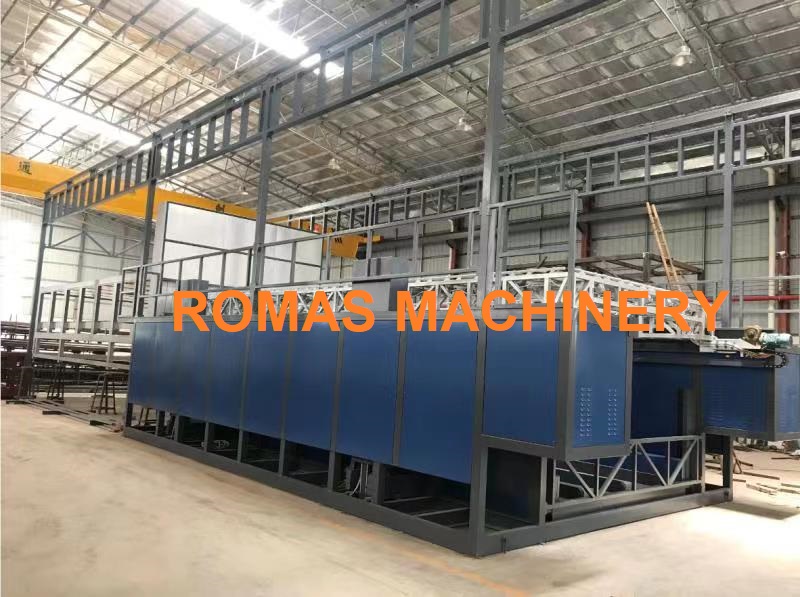

Heating oven 1.Room size:12000*3000*1000mm;

2.Liner is 201 stainless steel plates; the outer wall is cold plate;

3.Oven wall thickness:100mm, filled with insulation foam;

4.Heating:electric heat tube, the upper and lower double-sided heating;

5.Temperature: multi-sensor automatic thermostat;

6.Temperature range: room temperature to 399 degrees;

7.Power 45KW+45KW=90KW;

8.Movable blocking door can divided the oven into two parts;

1set

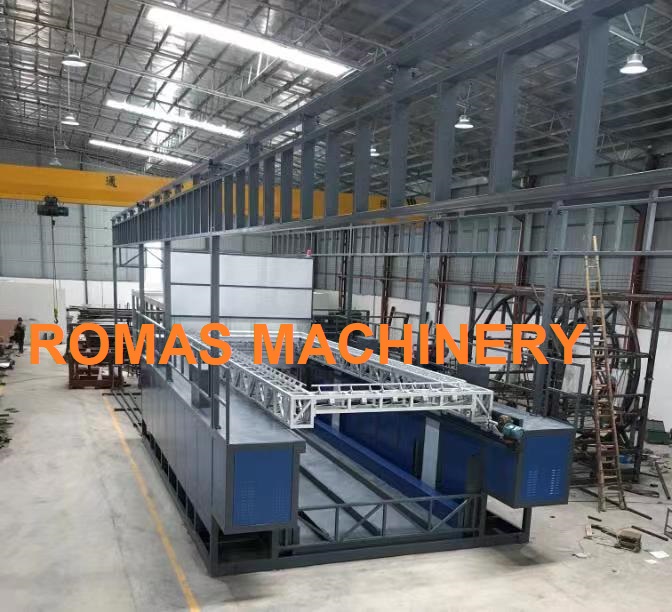

Forming platform 1.The largest forming size:12000*3000mm;

2.Transmission: hydraulic;

3.Balance error:3mm;

4.Operating modes: command-style semi-automatic;

5.Transmission of plastic sheet: Directive mechanical transmission;

6.Up and down travel limit:1m;

7.Clamp method: grouping manual rapid clips;

1 set
Spa forming platform 1.The largest forming size:3000*3000mm

2.Transmission: hydraulic;

3.Balance error:3mm;

4.Operating modes: command-style semi-automatic;

5.Transmission of plastic sheet: Directive mechanical transmission;

6.Up and down travel limit: 1m;

7.Clamp method: grouping manual rapid clips;

1 set
Vacuum pump 100 liter rotary vane vacuum pump or water ring vacuum pump 1 set
Vacuum tank 1.Volume: Recommendation 20 cubic meters, horizontal layout;

2.Maximum negative pressure: -0.9;

3.Automatic vacuum control;

4.Vacuum time:12 minutes;

1 set
Hydraulic system 1.7,5P hydraulic station:1pc

2.Safety limit load: 12 tons

3.Hydraulic rod: two pieces each elevating platform;

4.Diameter of piston rod: 80mm;

5.Hydraulic weight transfer;

6.Automatic pressure maintaining , adjustable pressure;

1 set

Auxiliary Equipments

Edge sawing machine

Resin Mixer

Spray gun

FRP Vacuum forming mold
