Acrylic bathtub Vacuum forming machine

Sheet thickness 2-8mm
Forming length 3000mm(Customizable)
Forming width 3000mm(Customizable)
Max forming depth 800mm(Customizable)
Work efficiency 2-3min/pcs
Heating oven Gas/Electricity and Oil
Operating gas pressure 3kpa
Max gas consumption per hour 100000 kcal is 12 m3 / h
Power supply 480 V / 60 Hz / 3Ph
Air pressure 0.6-0.8Mpa
Machine size(L×W×H) 6000*5200*4200mm
Net weight About 8000kg

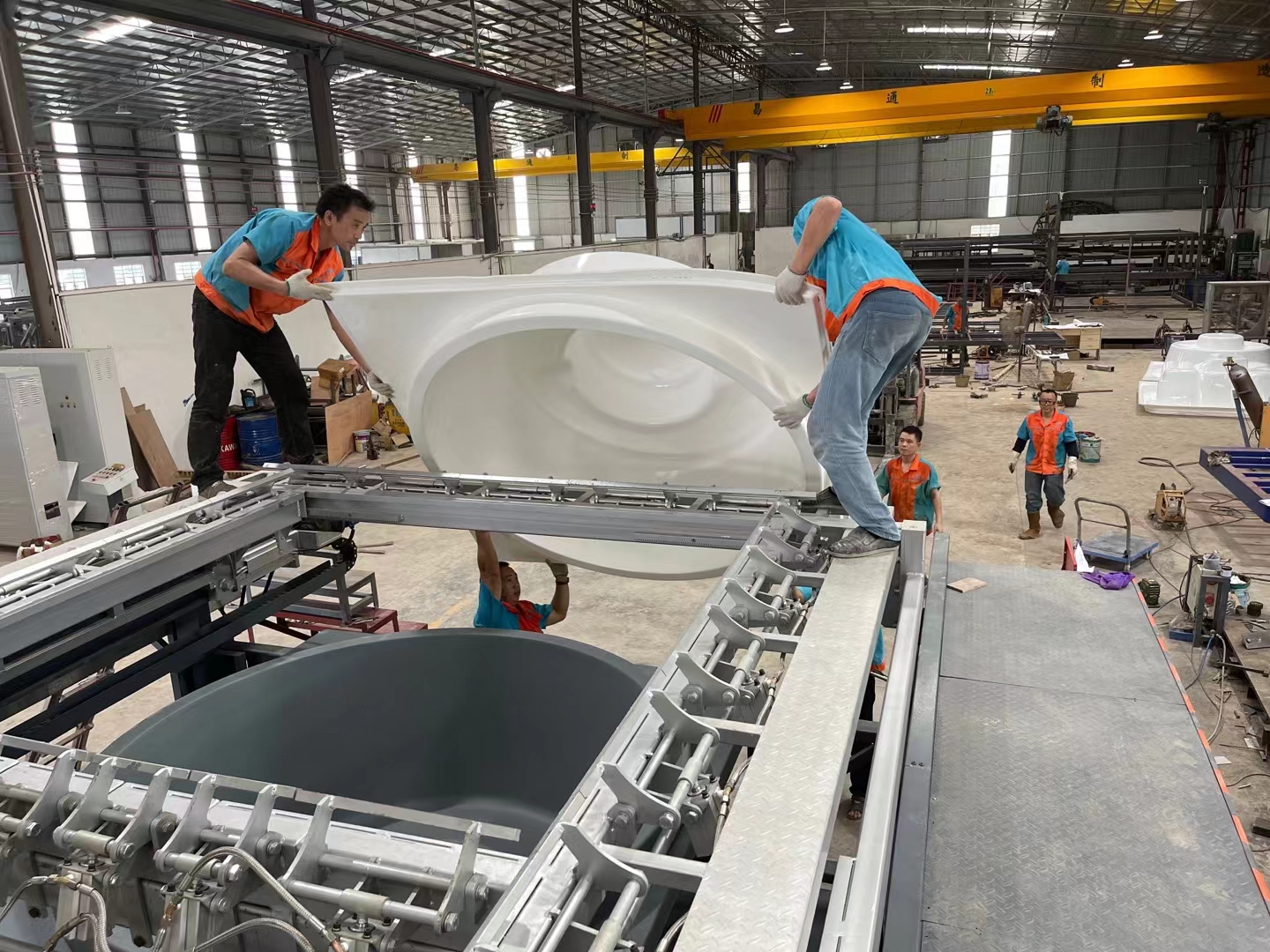

Vacuum forming machine for bathtub / SPA / SWIMMING POOL

We have different heater oven styles that can be chosen by electricity/oil / gas

The Machine Main Technical Parameters

Parameters Contents
Material PP, PE, PS, PVC, PET, ABS, HIPS, Acrylic degraded material, etc.
Sheet thickness 2-8mm
Forming length 3000mm(Customizable)
Forming width 3000mm(Customizable)
Max forming depth 800mm(Customizable)
Work efficiency 2-3min/pcs
Heating oven Gas/Electricity and Oil
Operating gas pressure 3kpa
Max gas consumption per hour 100000 kcal is 12 m3 / h
Power supply 480 V / 60 Hz / 3Ph
Air pressure 0.6-0.8Mpa
Machine size(L×W×H) 6000*5200*4200mm
Net weight About 8000kg



Bathtub Manufacturing Process

Technical Data series

Components Description QTY
Heating oven 1.Room size:1800*1000*600mm;

2.Liner is 201 stainless steel plates; the outer wall is cold plate;

3.Oven wall thickness:100mm, filled with insulation foam;

4.Heating:electric heat tube, the upper and lower double-sided heating;

5.Temperature: multi-sensor automatic thermostat;

6.Temperature range: room temperature to 399 degrees;

7.Power 45KW+45KW=90KW;

8.Movable blocking door can divided the oven into two parts;

1set
Forming platform 1.The largest forming size:1800*1000mm;

2.Transmission: hydraulic;

3.Balance error:3mm;

4.Operating modes: command-style semi-automatic;

5.Transmission of plastic sheet: Directive mechanical transmission;

6.Up and down travel limit:1m;

7.Clamp method: grouping manual rapid clips;

1 set
Spa forming platform 1.The largest forming size:2400*2400mm

2.Transmission: hydraulic;

3.Balance error:3mm;

4.Operating modes: command-style semi-automatic;

5.Transmission of plastic sheet: Directive mechanical transmission;

6.Up and down travel limit: 1m;

7.Clamp method: grouping manual rapid clips;

1 set
Vacuum pump 100 liter rotary vane vacuum pump or water ring vacuum pump 1 set
Vacuum tank 1.Volume: Recommendation 20 cubic meters, horizontal layout;

2.Maximum negative pressure: -0.9;

3.Automatic vacuum control;

4.Vacuum time:12 minutes;

1 set
Hydraulic system 1.7,5P hydraulic station:1pc

2.Safety limit load: 12 tons

3.Hydraulic rod: two pieces each elevating platform;

4.Diameter of piston rod: 80mm;

5.Hydraulic weight transfer;

6.Automatic pressure maintaining , adjustable pressure;

1 set



Auxiliary Equipments

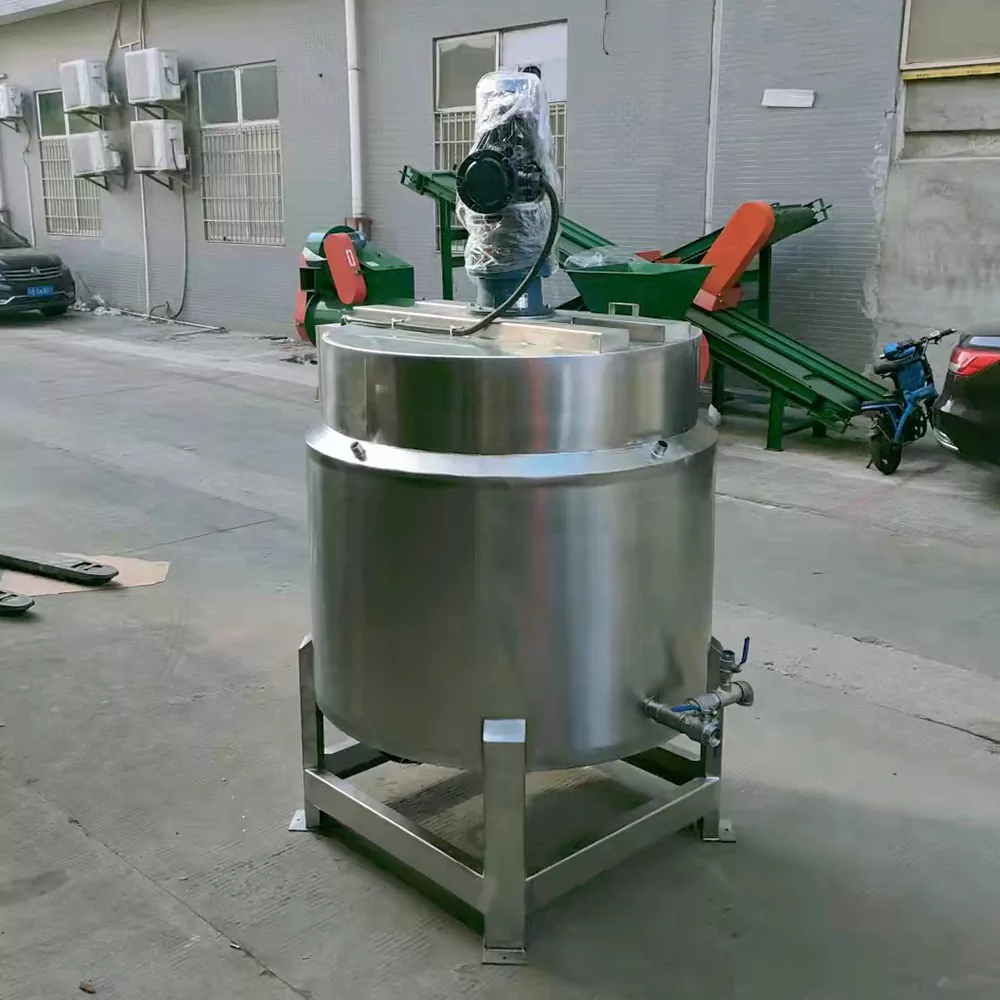

      Spraying equipment                                    Edge sawing machine                            Thermostatic resin mixing tank
